| DAM |

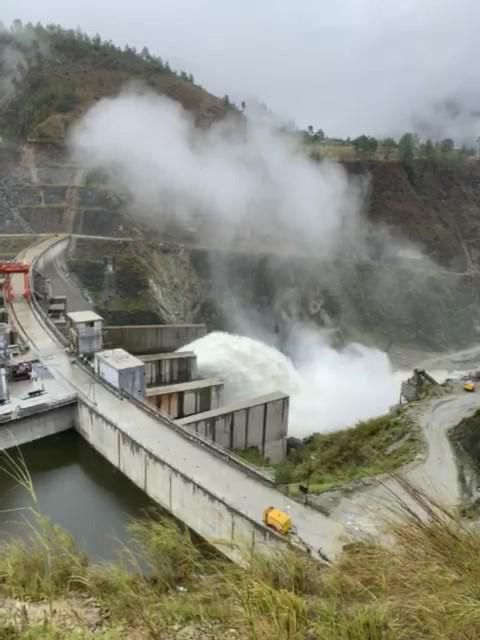

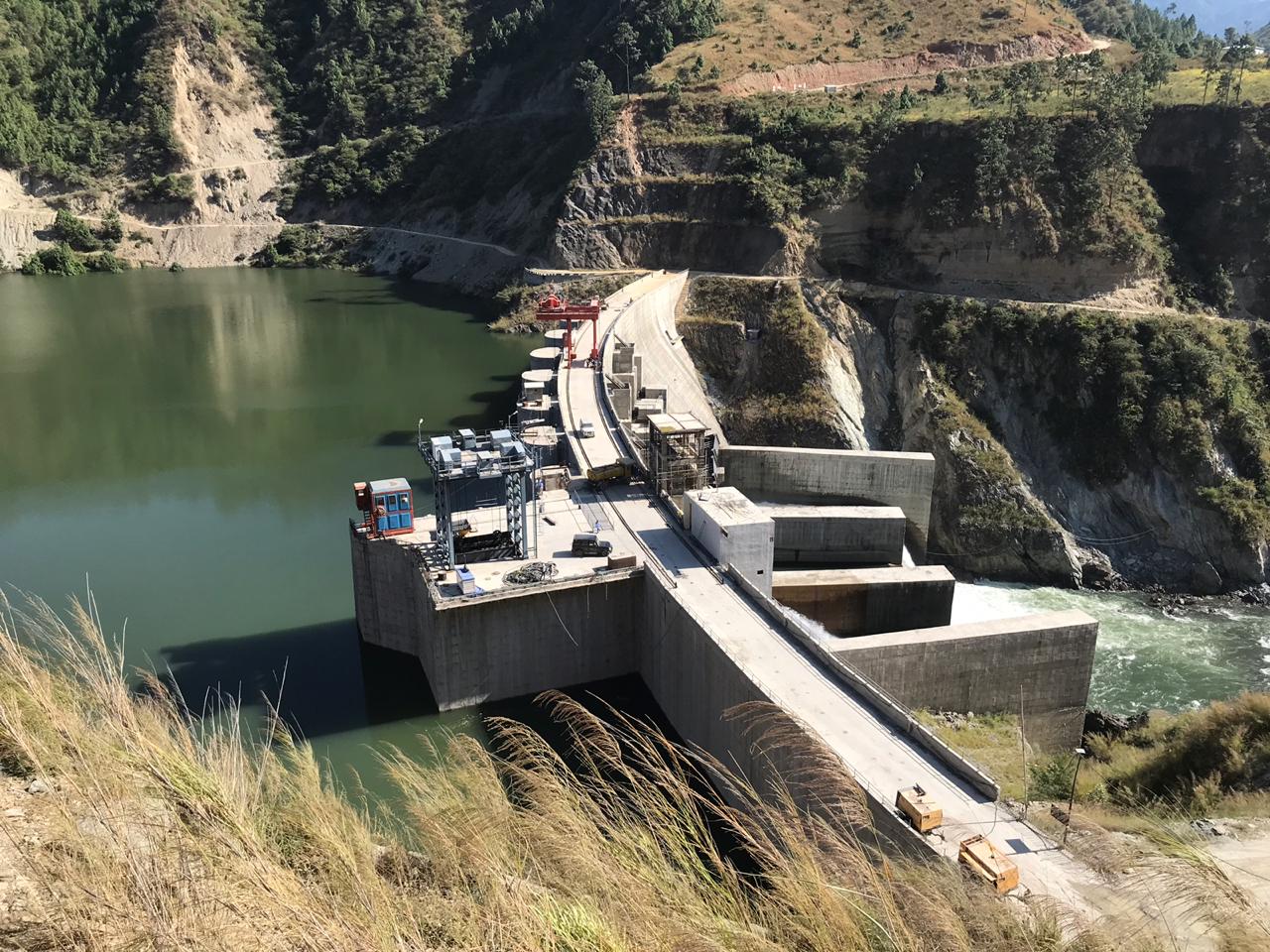

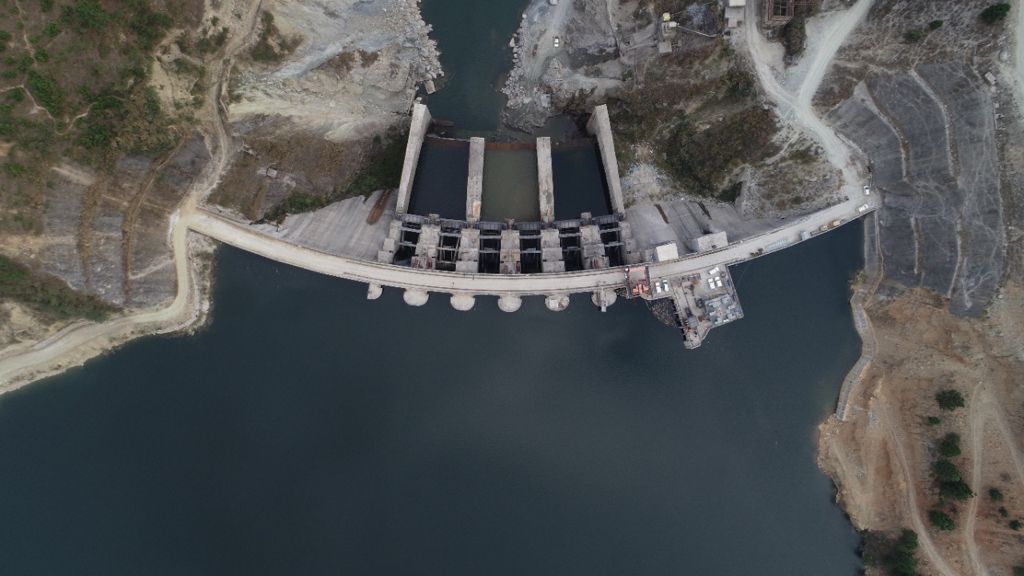

Concrete Gravity Dam

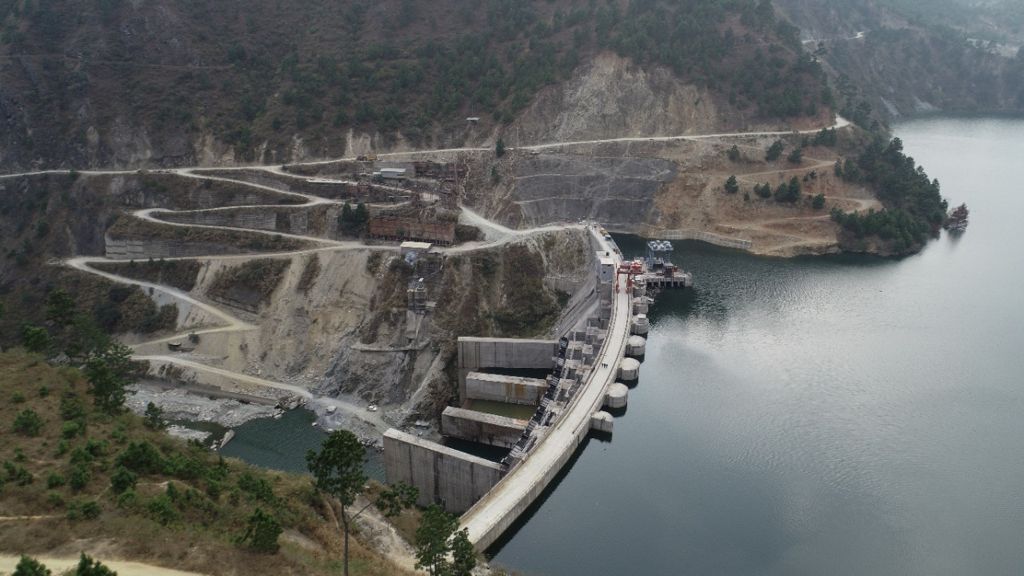

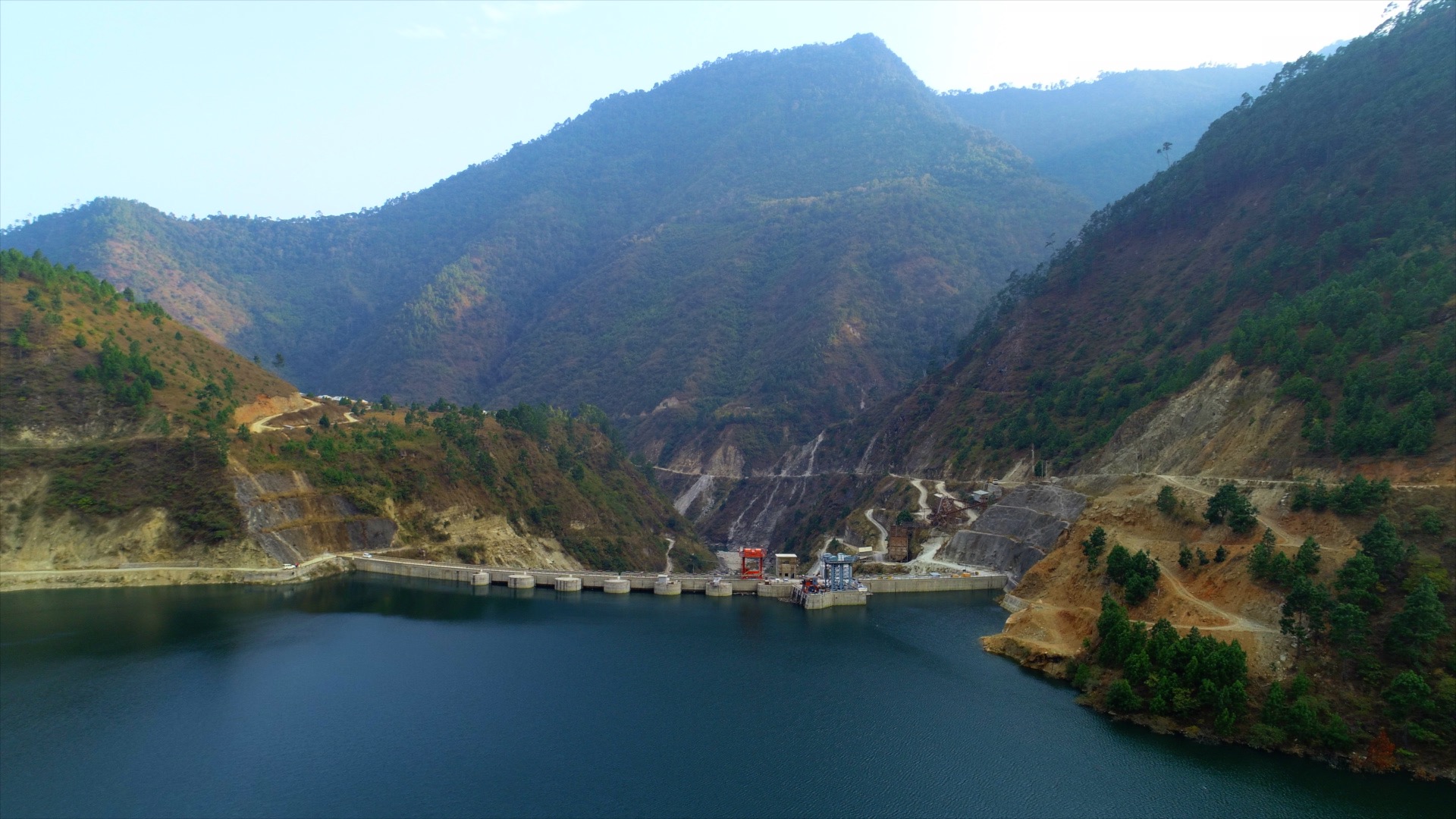

Bichom Dam - Length :: 264.15 m, Height :: 69m

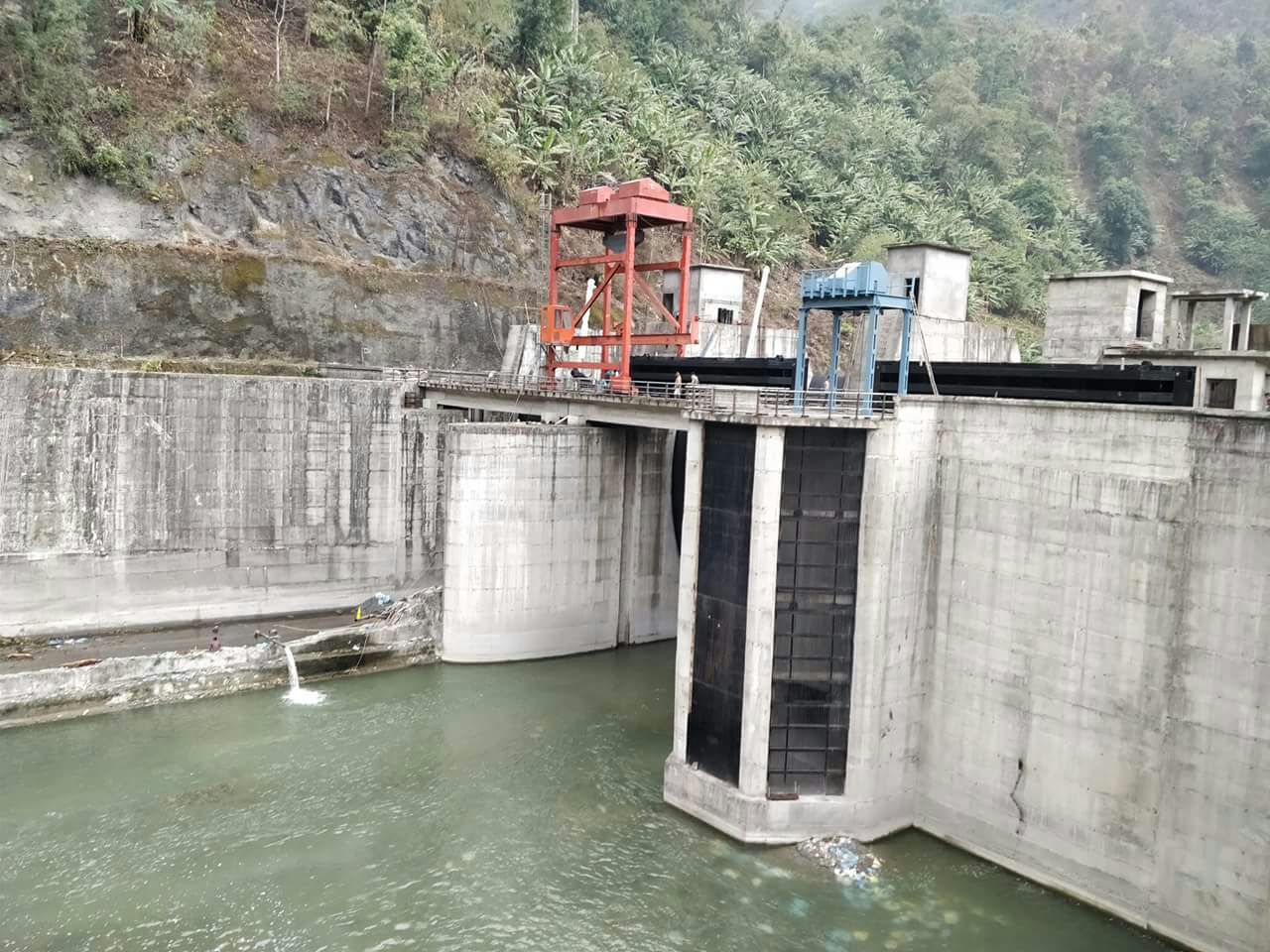

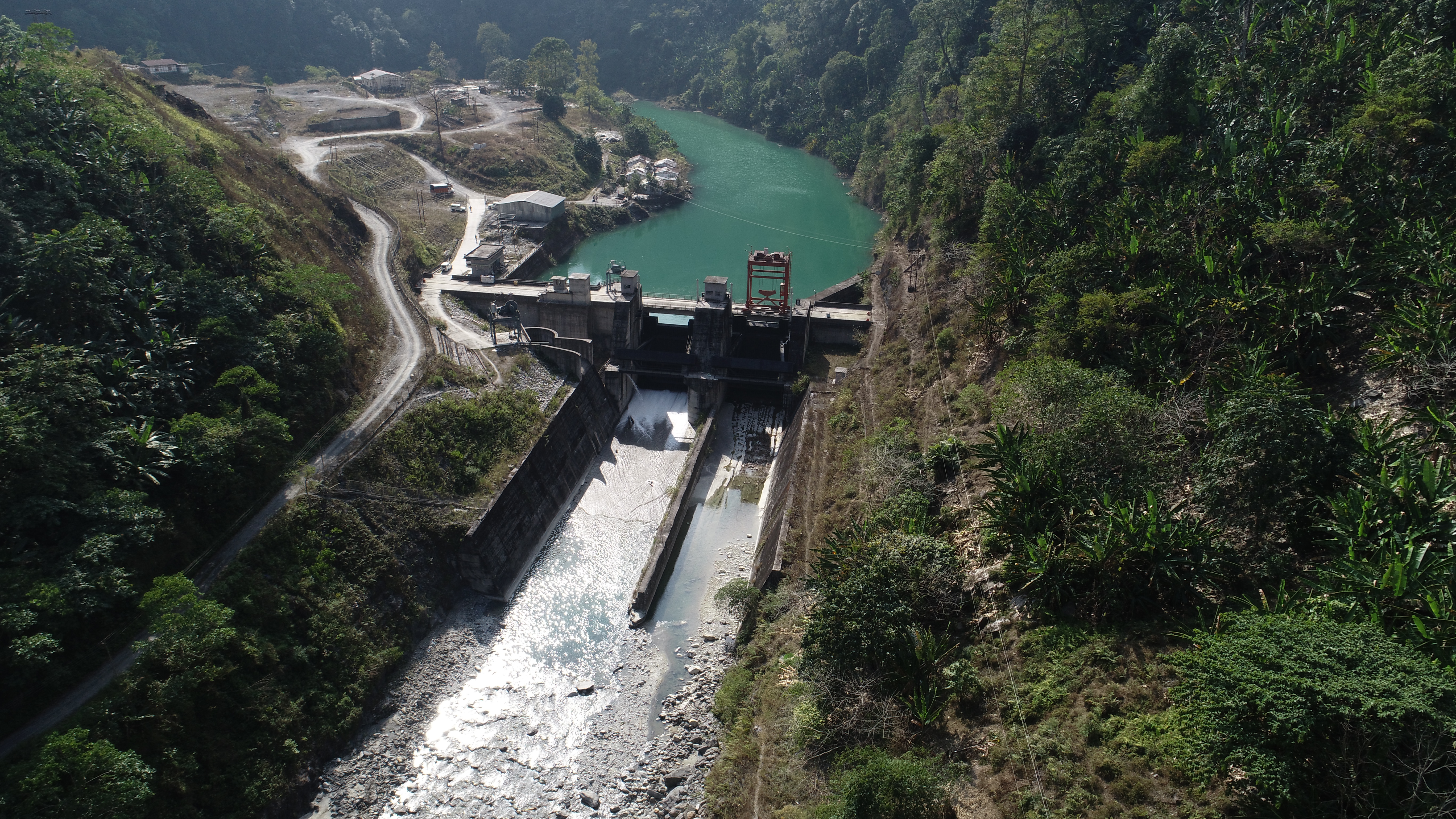

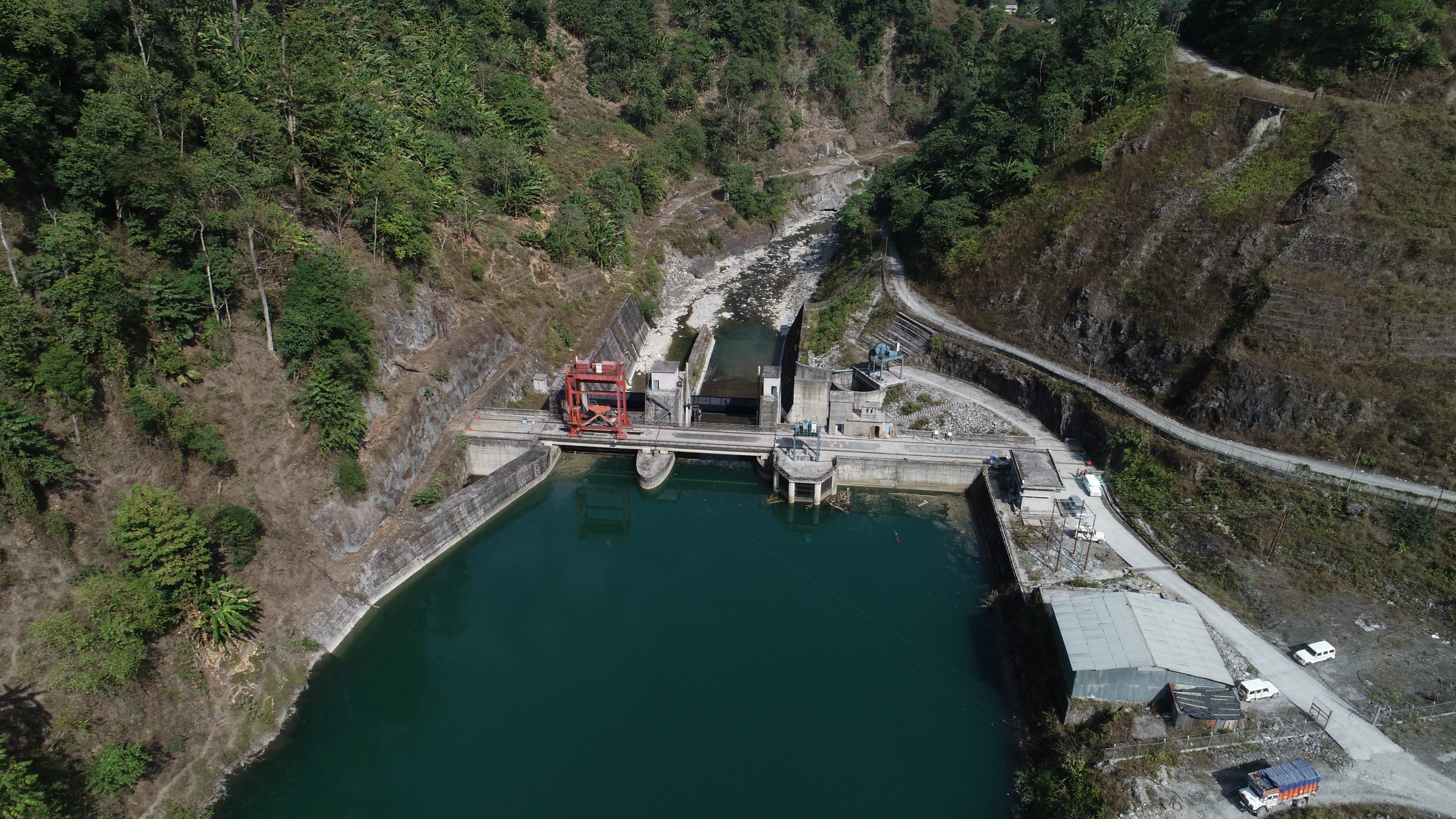

Tenga Dam- Length :: 103 m, Height :: 24.5 m |
| FRL |
Bichom Dam - 770 m
Tenga Dam - 770 m |
| MDDL |
Bichom Dam - 764.5 m
Tenga Dam - 763 m |
| Design Head |
504 m |

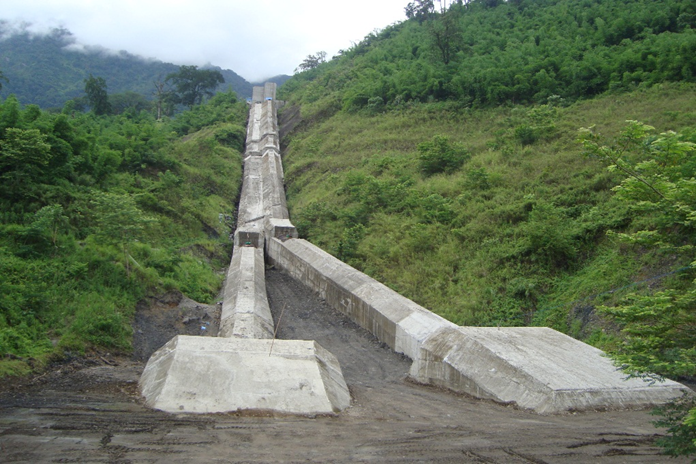

| Penstock |
1 No. of Pressure Tunnel of 5.30 m dia Bifurcates to 2 Nos. of
3.75 m dia which further Bifurcates to 2 Nos. of 2.65 m each to
feed 4 Units of 150 MW in Power House. |
| HRT |
Length : 14.527 Km
Dia. : 6.70 m |

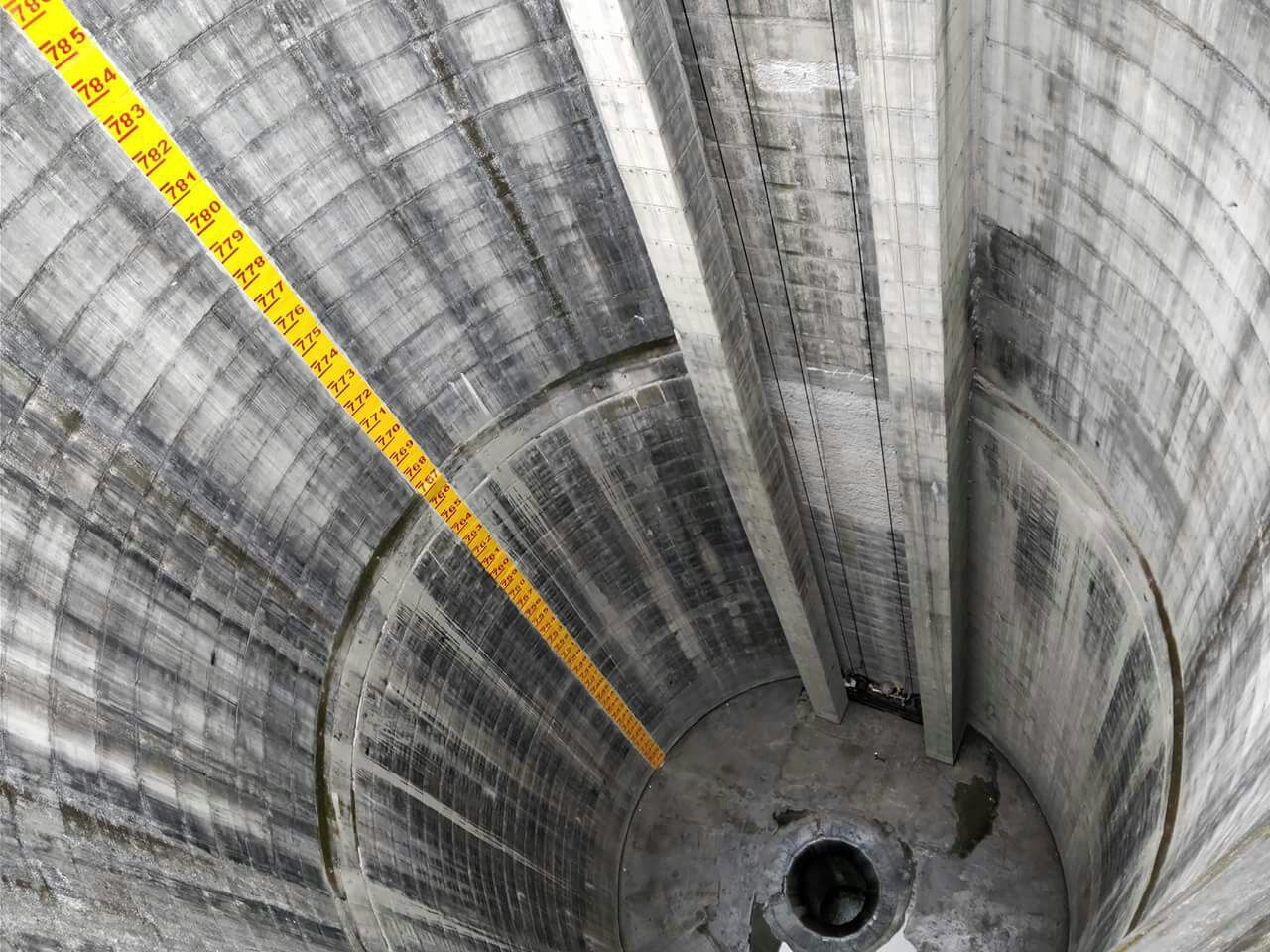

| Surge Shaft |
RESTRICTED ORIFICE / Non- Overflow, 69.35 Mtr Depth, 25 Mtr Dia. |

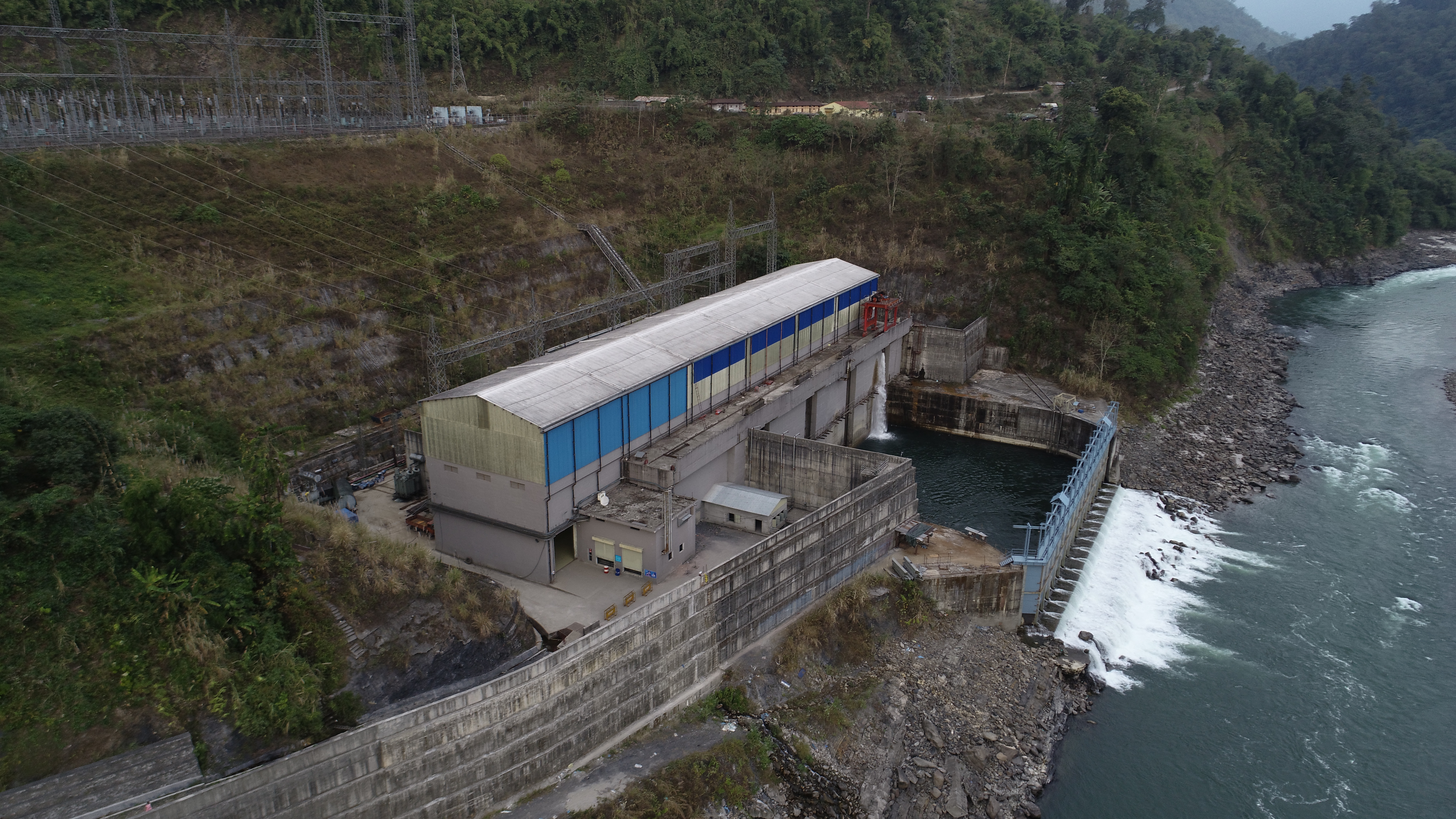

| Power House |
Surface, 4 no. Vertical Francis Turbine |
| Generator |
4 no. Semi-Umbrella Type, 167.5 MVA, Rated Voltage- 13.8 KV |
| Generator Step Up Transformer |
1-phase, 63MVA, 13.8/400 KV |

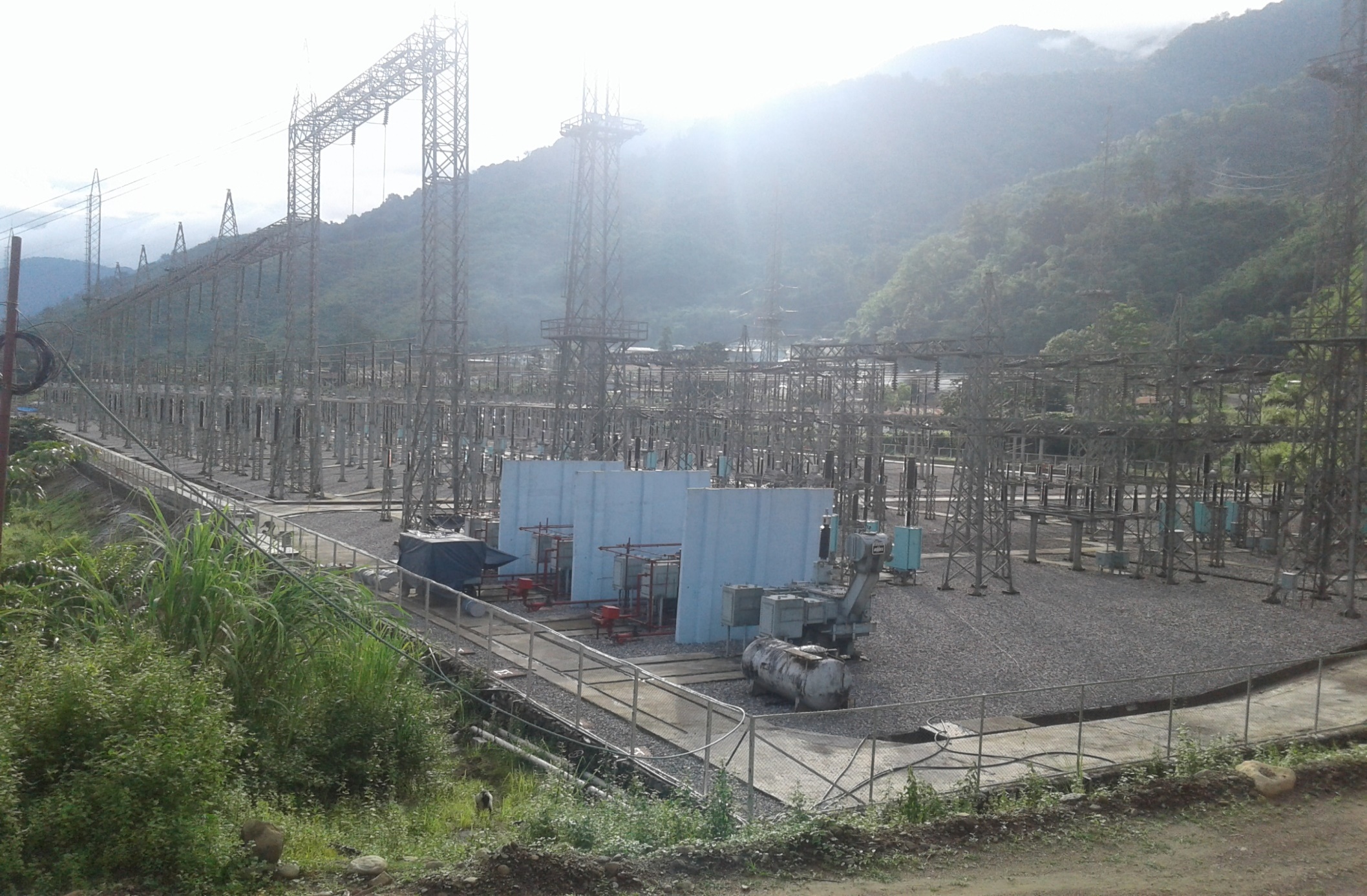

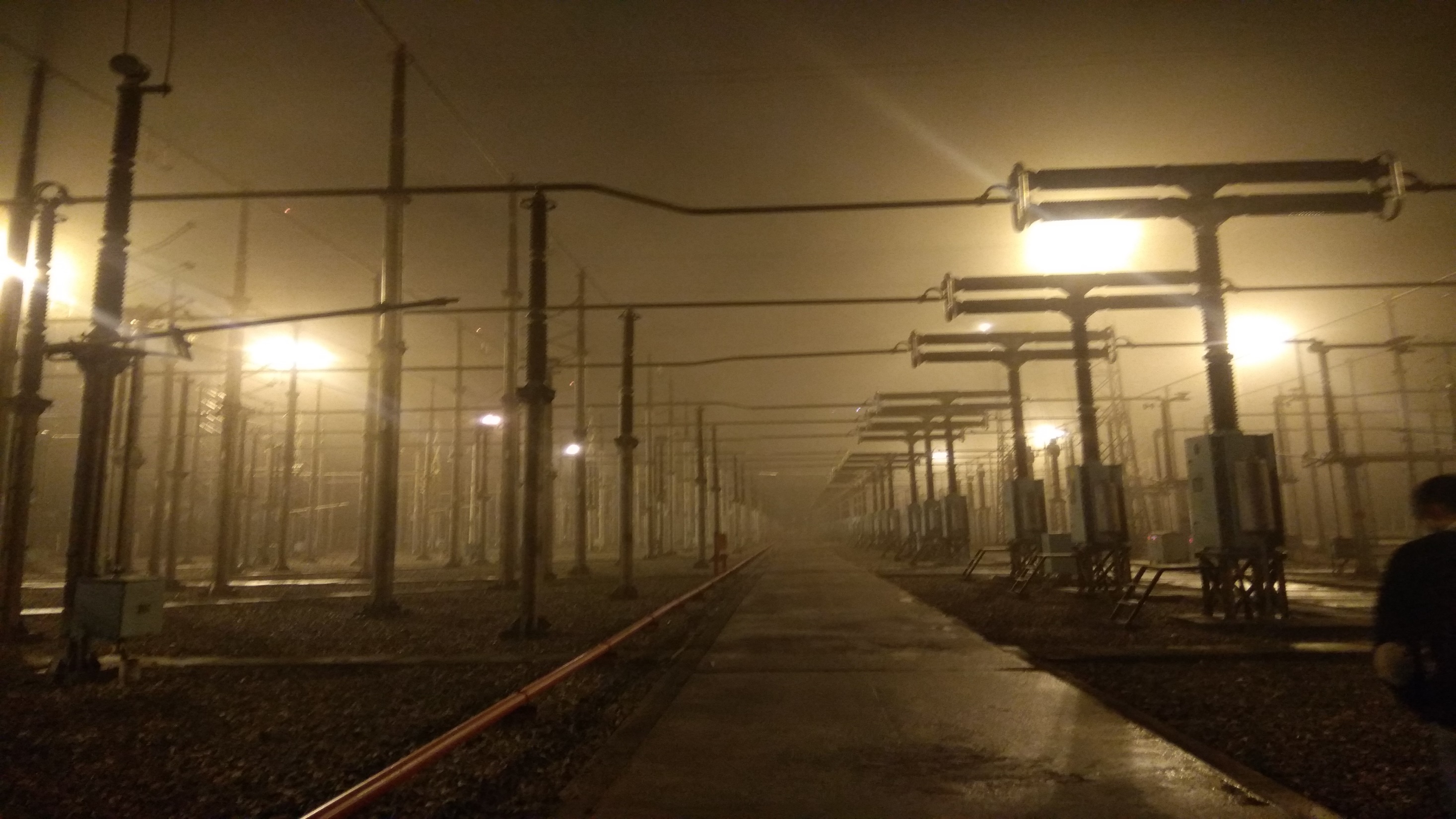

| Evacuation of Power |
Kameng – Balipara 400 kV D/C line |
